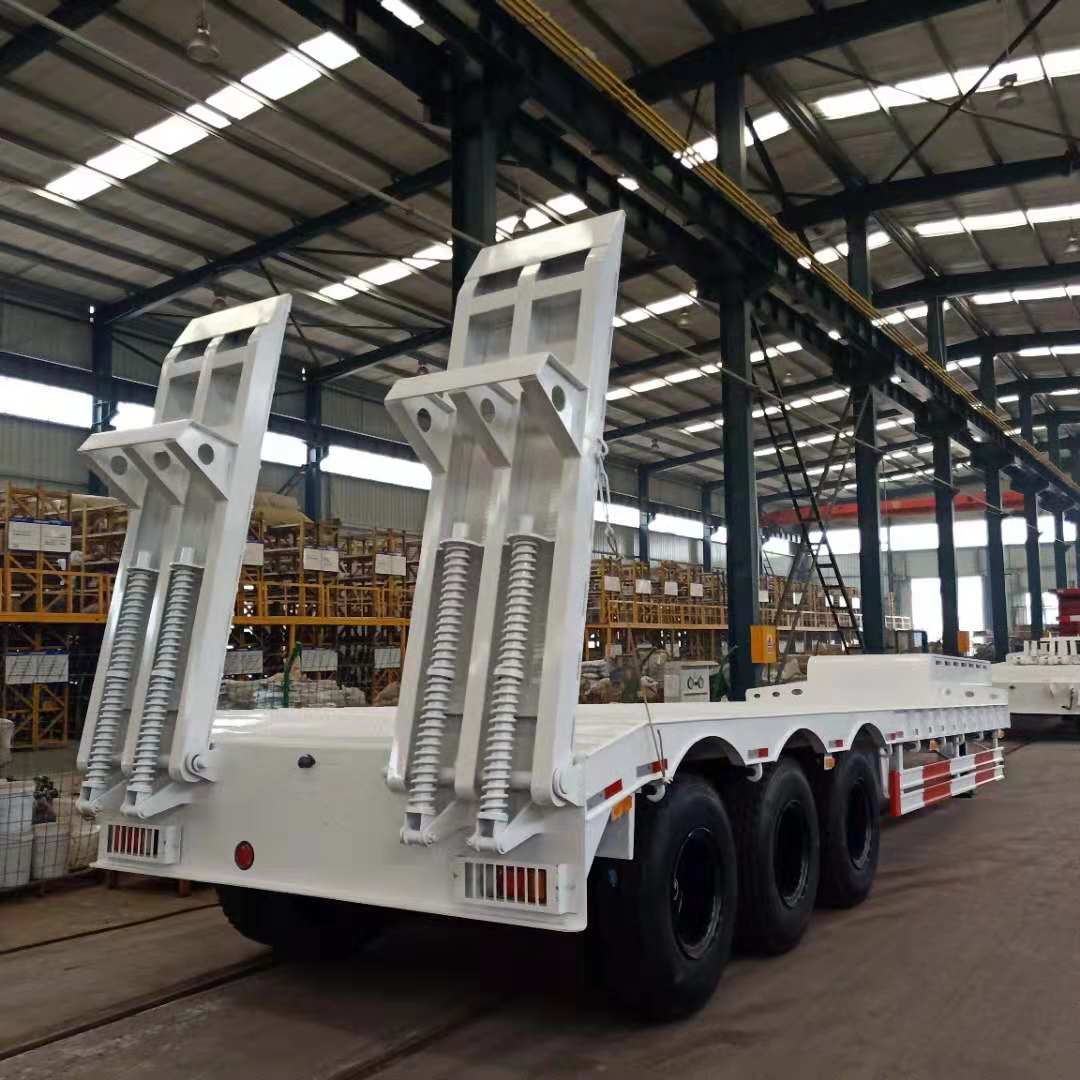

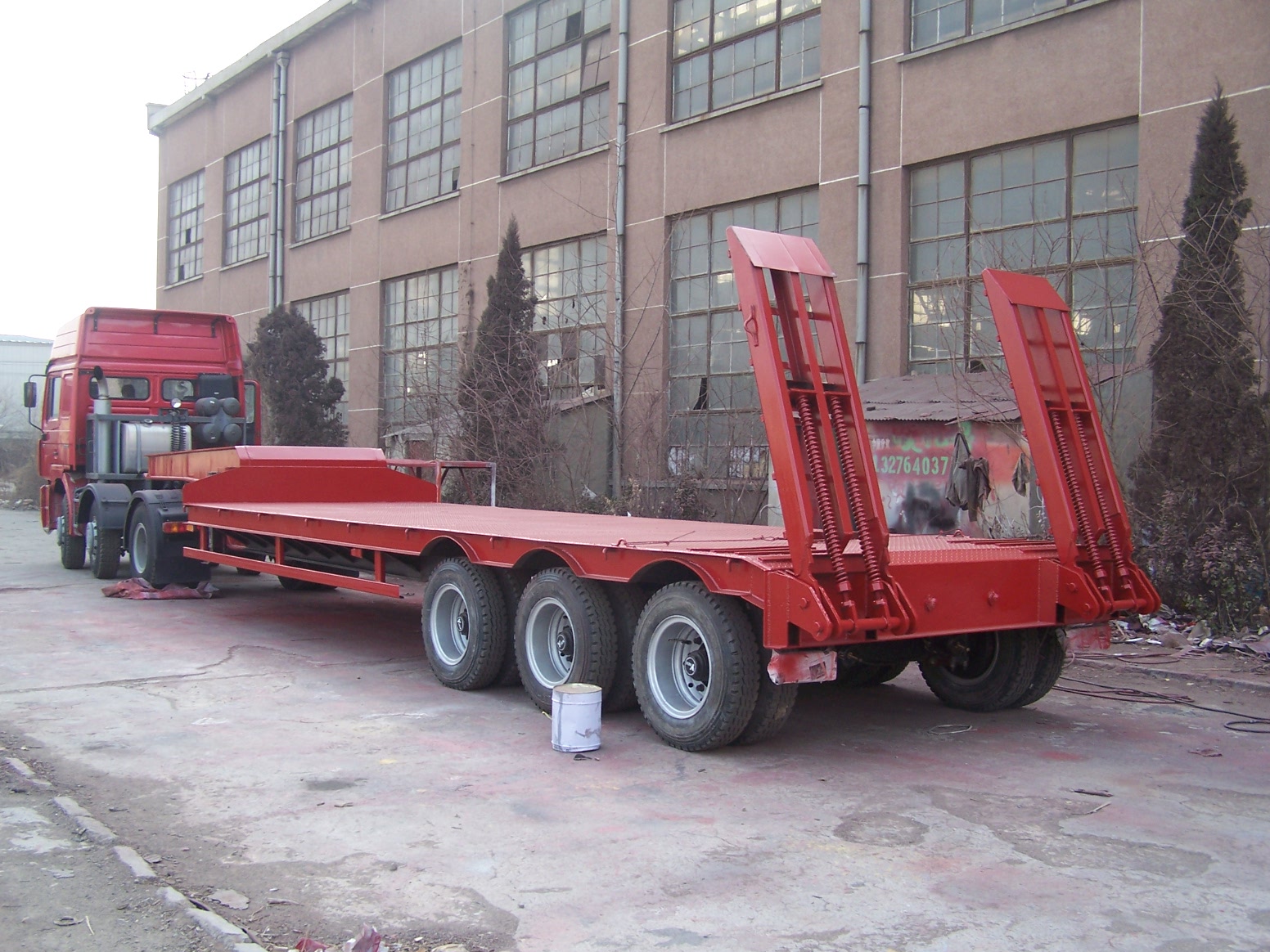

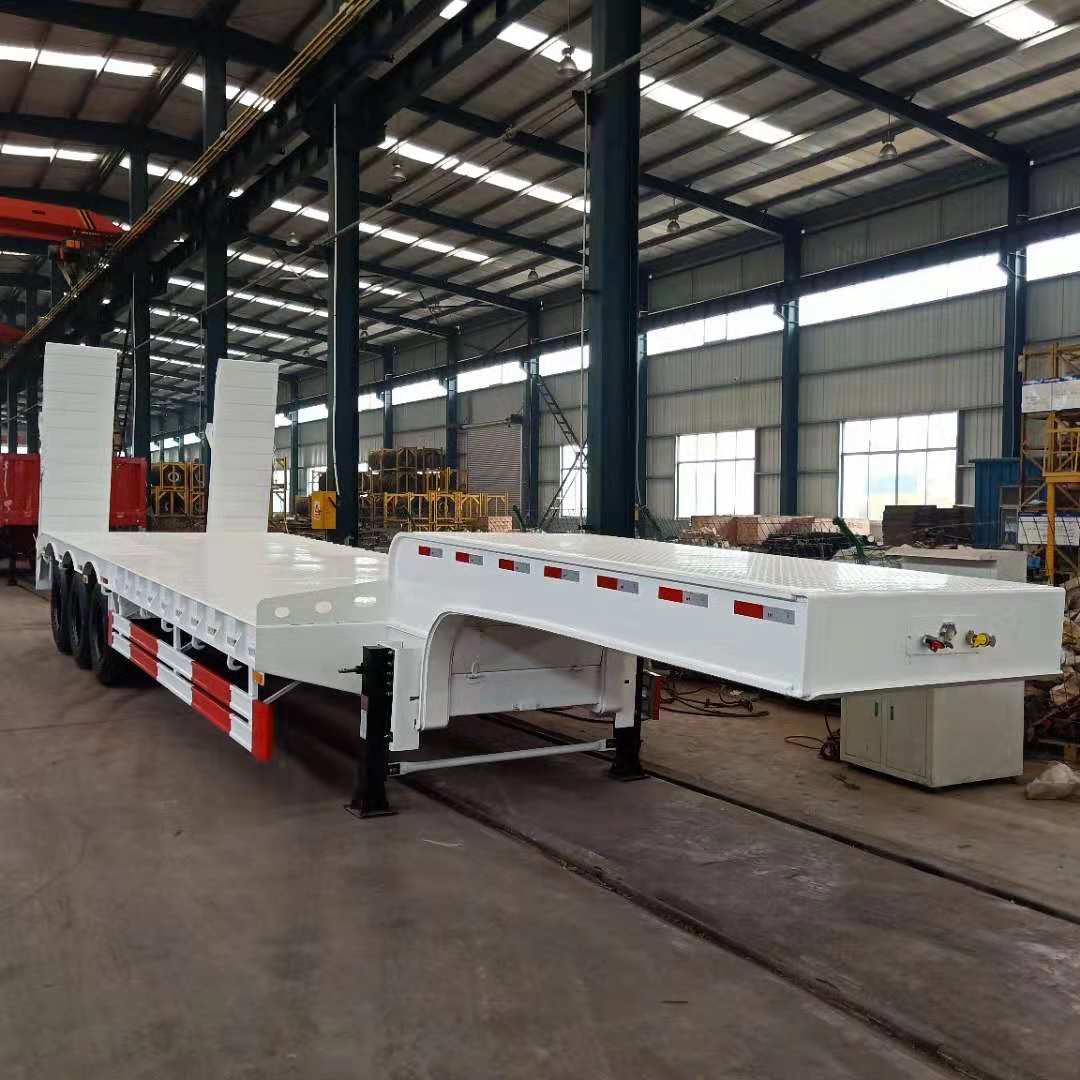

三轴低平板半挂运输车
额定载重
40吨
总尺寸
13000*3000*1700mm（不含爬梯高度）
工作平台
8000-8500*3000mm
产品详情
技术参数表
|
dimension(mm)尺寸 |
Length×width×height:12,800×3,000×3,300 (The height will be adjusted according to the tractor specification.根据牵引车的高度确定) |
|
Length of Loading Platform(mm)货台长度 |
Approximate 8,500mm |
|
Height of Loading Platform(mm)货台高度 |
Approximate 1,270mm |
|
tare weight（kg）自重 |
approximate 10,500 |
|
payload （kg）载重 |
40,000 |
|
Floor 面板 |
4mm checker plate 4mm厚花纹钢防滑面板 |
|
Hook and Pull ring 绳钩和拉环 |
4 cast steel hooks and 3 pull ring on each side of the platform 每侧4个绳钩和3个拉环 |
|
Paint 喷漆 |
primer + top coat, polyurethane paint 底漆加面漆，专用聚氨酯防腐油漆 |
|
Landing Gear 支腿 |
Goldstone 28T, Lifting capacity 28T and static load 80T. Goldstone 28T，动载28吨，静载80吨，专用支腿 |
|
Kingpin牵引销 |
JOST 90#, exchangeable JOST 90#，可拆卸式 |
|
brake system制动系统 |
Dual air brake system, 30/30 type on rear two axles with brake valve. 双回路空气制动，后两轴双腔气室，标配紧急继动阀 |
|
ABS |
No无 |
|
Suspension悬挂 |
Mechanical suspension 三轴机械悬挂 |
|
Axle车轴 |
Fuwa 13T, 3units, ISO10 Holes, optioned by factory. 富华 13T，3根,10孔，工厂标配。 |
|
Tire轮胎 |
Type: 12R22.5, equip 12 per chassis. China famous brand. 12R22.5，12条。中国知名品牌轮胎。 |
|
tool box工具箱 |
1 set steel box |
|
spare tire carrier 备胎架 |
1 unit per chassis |
